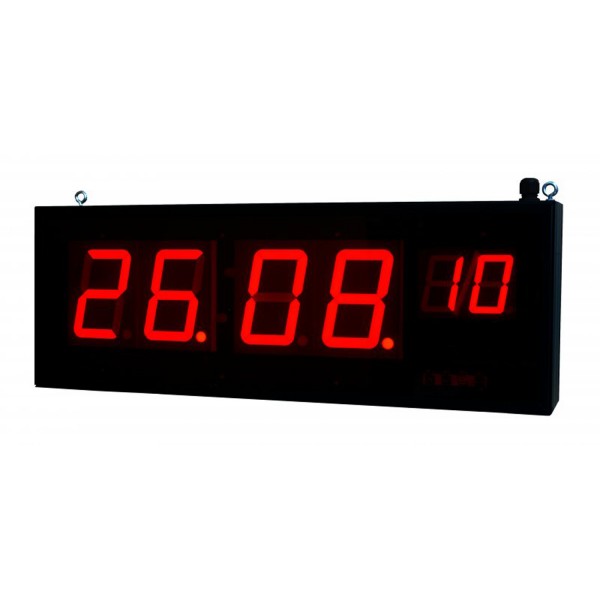

The Simex SWZ-W610 digital clock displays current time on 6-digit, high brightness, LED display. The readings are shown in sequence: present time (hours, minutes and seconds), present date (day of month, month and two last digits of year) temperature and humidity (if optional temperature and humidity sensor is fitted).
The time is presented in 24-hours mode and an internal battery preserves proper time counting, even if power is disconnected.
The device has a sturdy aluminium and acrylic case and is designed for indoor operation (rated as IP30). The red LED digits are adjustable for brightness through 8 levels.
An IR receiver allows for device reprogramming without the need to remove the casing. An optional remote controller (SIR-15) enables remote setting of all clock parameters. The clock also has 4 keys built-in to allow local adjustment of settings.
Optional Temperature and Humidity sensors are as follows:
SCT-650: temperature sensor, measuring range: -40°C…+85°C, diameter: Ø6 mm, internal.
SCT-653: temperature sensor, measuring range: -40°C…+85°C, diameter: Ø6 mm, via external cable (length: 3 m)
SCT-750: temperature / humidity sensor, measuring range: -40°C…+120°C, diameter: Ø8 mm, internal.
SCT-753: temperature / humidity sensor, measuring range: -40°C…+120°C, diameter: Ø8 mm, via external cable (length: 3 m)
or without temperature/humidity sensor
Features of the Simex SWZ-W610
- large-size digital temperature, humidity and clock display
- RS-485 / Modbus RTU connection for remote programming (see also optional item SRS-U4 RS485/USB converter)
- optional IR remote
- optional Temp/humidity sensor & display
- mains 230VAC powered or optional 24VDC version
