UPWT Series, Universal Industrial Text Display

The UPWT-1, Universal Industrial Text Display, flexible LED information system with IP66 and remote communications.

60 mm
LED Dot Matrix
5 - 7
IP 66
Outdoor
Factory

£470.00£483.00

Character Height

Display Colour

Display type

Interface

, ,

Number of Digits

Operating Voltage

,

IP Rating

Environment

,

Clear
Add to compare
Estimated Delivery 18th May - 25th May
Categories: , Supplier:

Documentation and Downloads

Overview

The UPWT-1 Universal Industrial Text Display – a flexible LED information system with IP66 and remote communications.

Display key process information in factories, offices and industrial locations improving control, efficiency and safety.

The UPWT-1 is a fixed-format (ie: one size) display for wall-mounting and offers industrial performance at an affordable price.

The unit can be reprogrammed remotely making it multipurpose and reusable – with a choice of communications protocols.

UPWT-1 Specific Technical Details for online ordering:

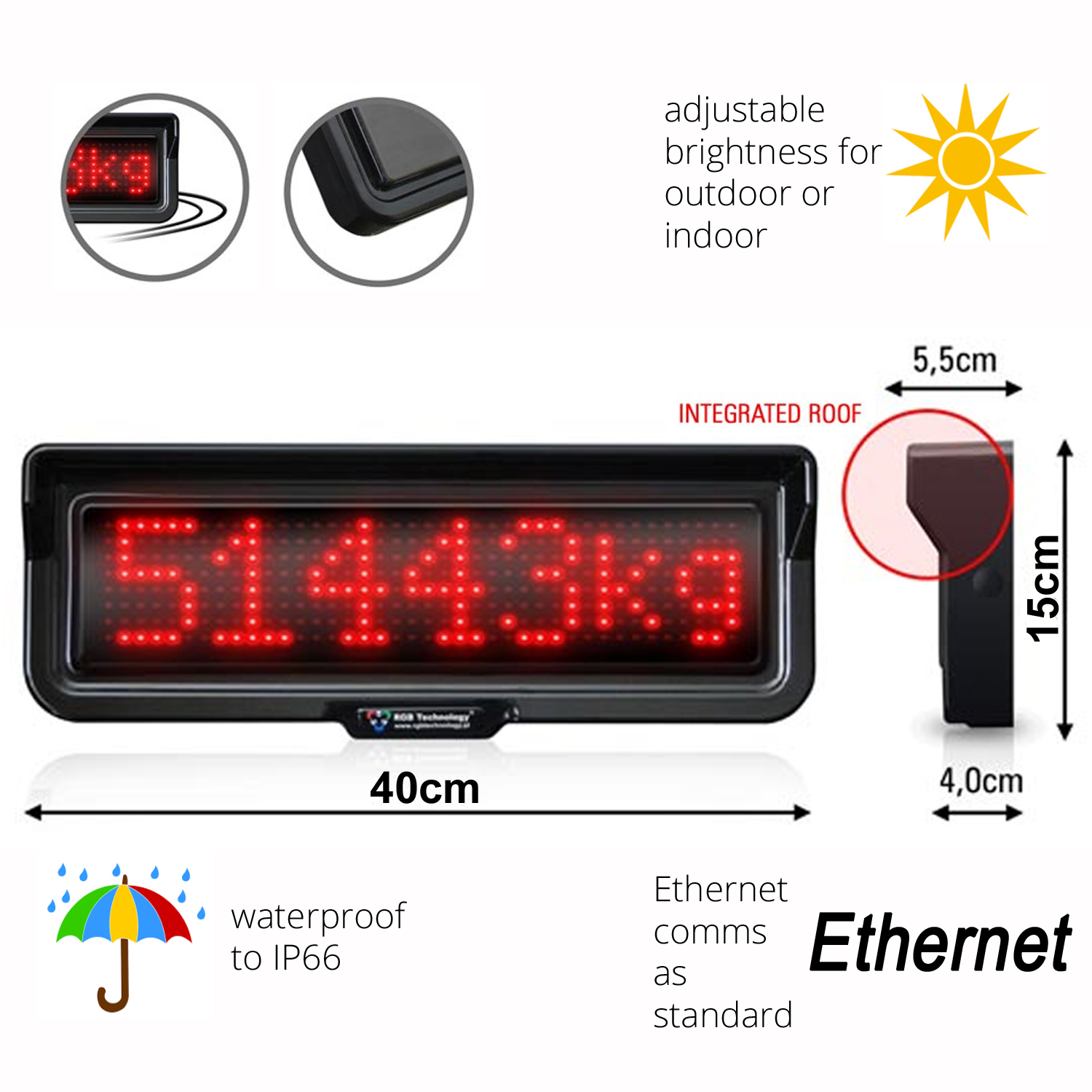

  • Environmental: IP66 and -20 to +60 Centigrade operation
  • Character height: 60mm
  • LED colour red only – see UPWT-2 model if other colour options are required.

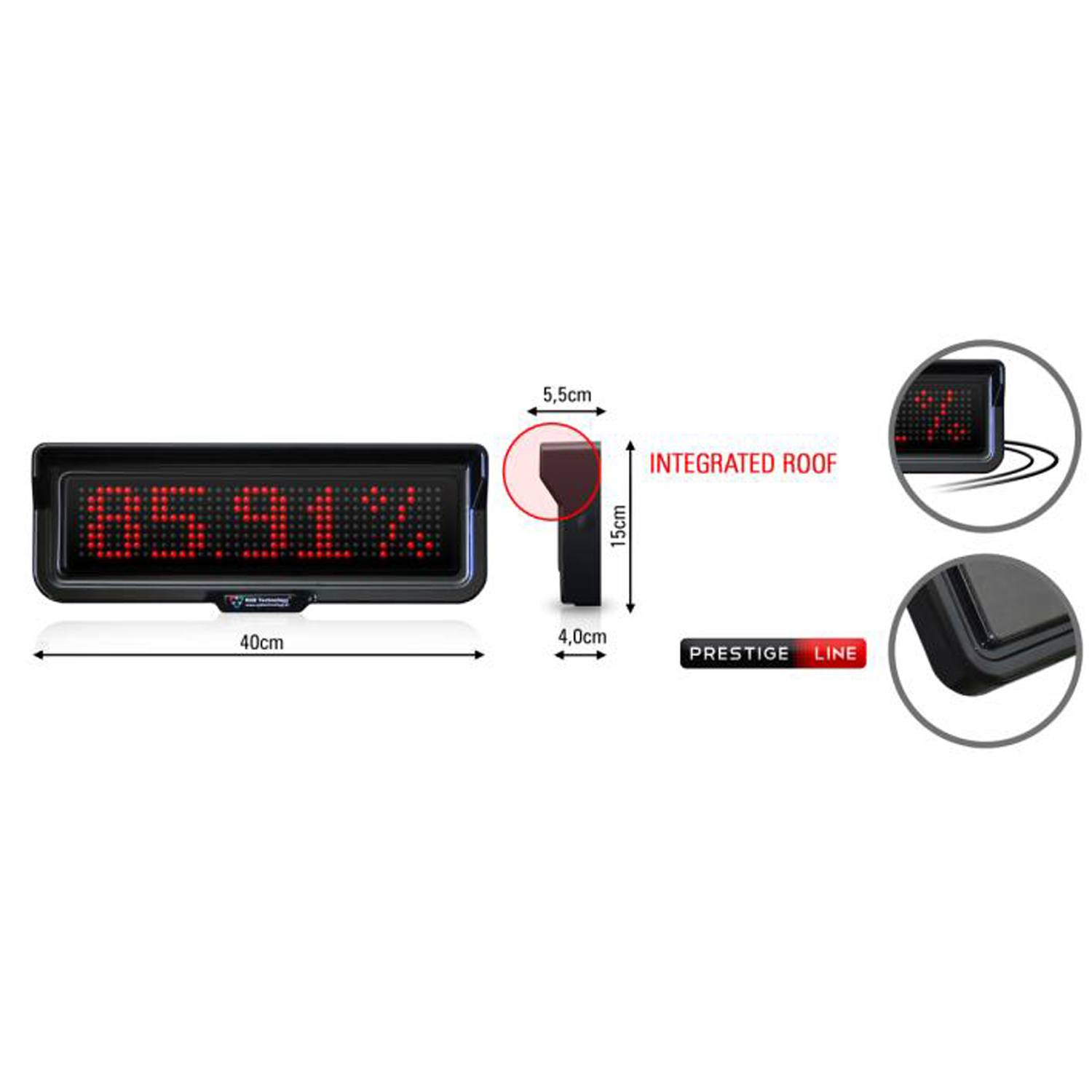

  • Height of casing: 15cm
  • Width of casing: 40cm
  • Unit Case Thickness: 4cm (with roofshade 5.5cm)
  • Number of  Characters: 5 – 7
  • Resolution in Pixels: 40 x 8
  • Mass: 1.5 Kg
  • Average Power Consumption: 5W
  • With Ethernet (LAN) interface as standard – select 2nd interface from RS485 or RS232 or 20mA digital Current Loop
  • Select fixed power version: mains AC or 12VDC or 24VDC
  • Polycarbonate housing (UPWT-1 Mini).

Character Sets

As well as English, the displayed text can contain characters from the following alphabets:
– PL, RU, DE, CZ, SK, HU, UA, LT, LV, NO, SE, FR, NL
– and special characters (for example % @ ° $ € < > + – = etc.)

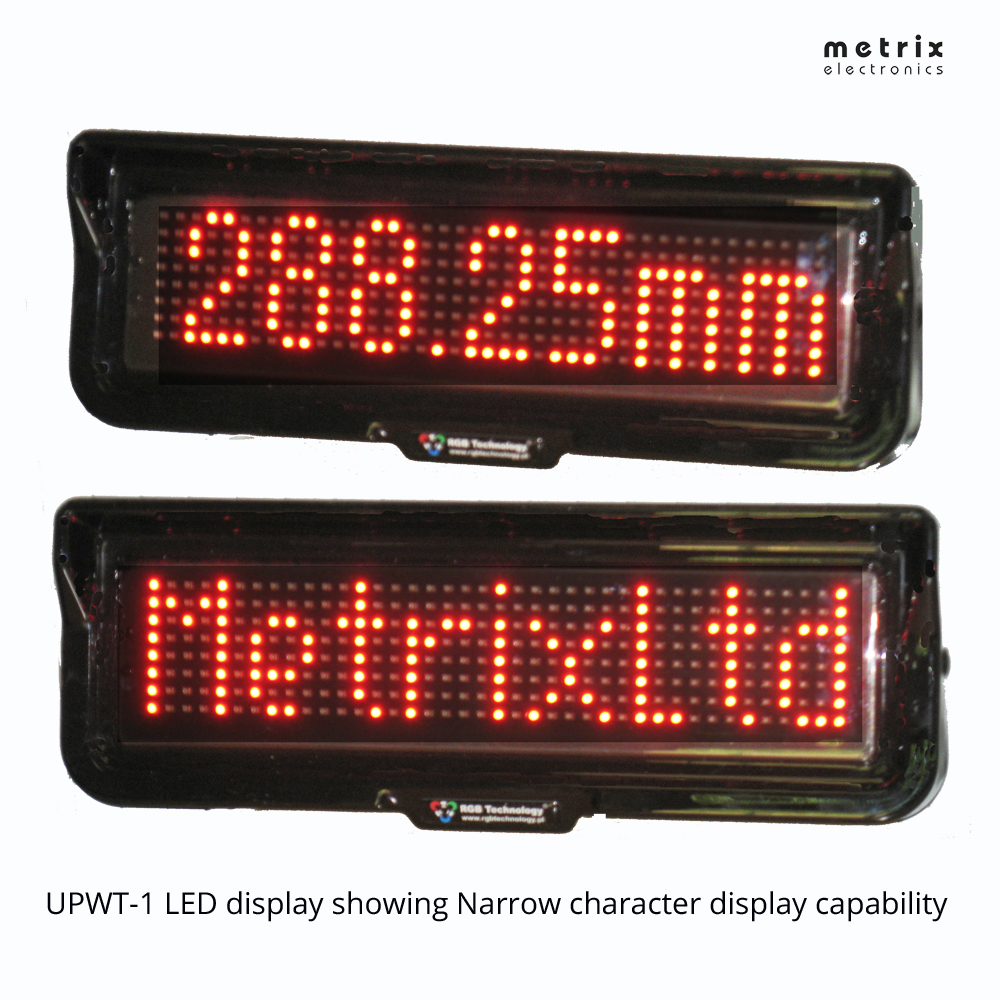

The UPWT-1 can display 7 full digits as shown:

Interfaces

Content, depending on the version of the device, can be transmitted by the following interfaces:

– Ethernet (two-way communication) – standard from Metrix

– RS485 (two-way communication) – optional

– RS422 – 232 (with optical isolation) – optional

– CL 20mA digital current loop (with optical isolation) – optional

Protocols

Displays communicate with the host system using one of the two protocols:

– MODBUS RTU (RS485 interface only)

– Uncomplicated R004 protocol developed by RGB Technology (included in the price of the device at purchase)

Interfaces with two-way communication enable acknowledgment of the receipt of the data by the display.

The specific capabilities of the device are as follows:

  1. Displaying flowing or stationary messages (forced flowing text, forced stationary text, switching on the flow of the text automatically when the messages do not fit on the display).
  2. Available length of messages is from 1 to 100 characters.
  3. 20 different speeds of the text flow.
  4. Two font-faces of standard characters (normal and bold).
  5. Five font-faces of digits with a fixed width dedicated to display numbers, for example finished items, daily schedule, etc.. (two normal font-faces and three bold font-faces).
  6. Displaying current temperature (extra option).
  7. Two modes of brightness adjustment: manual (10 different brightness levels) or automatic (4 different profiles of the brightness sensor displaying the 10 brightness levels according to ambient lighting).

Mounting

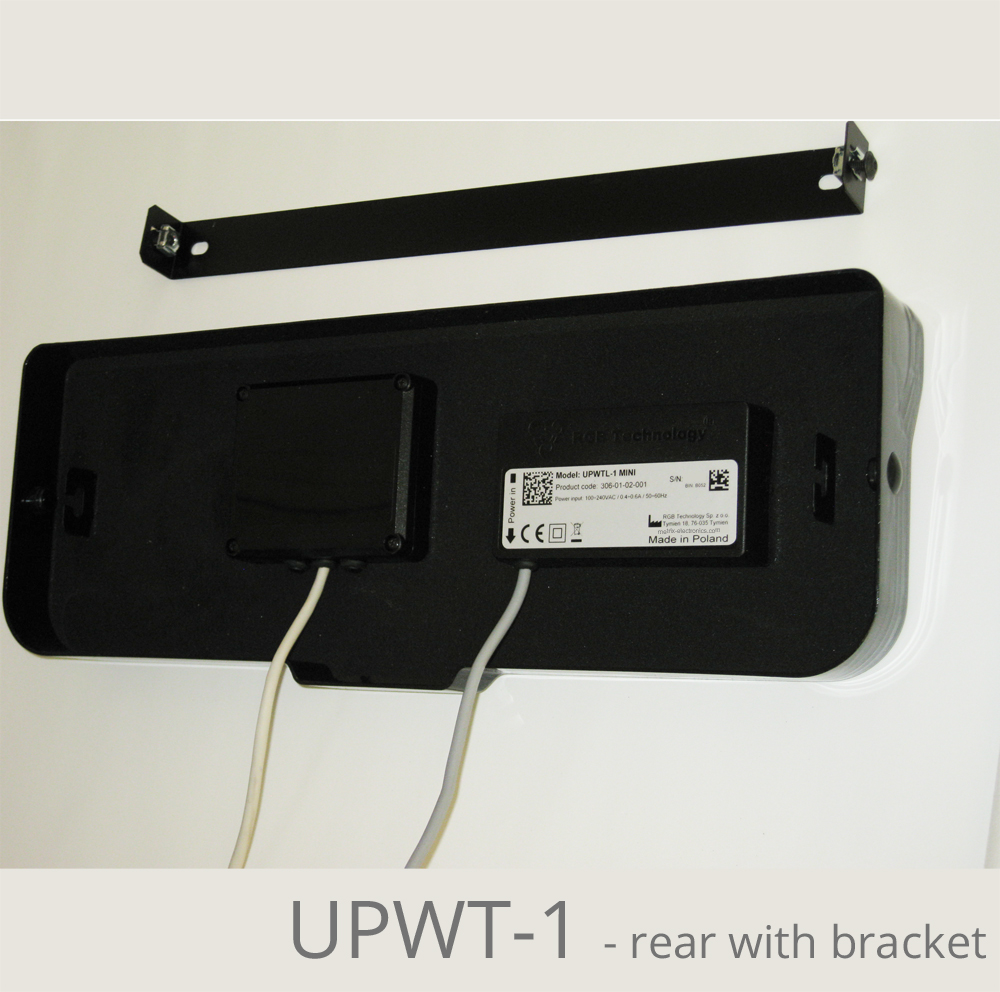

The UPWT-1 is supplied with a steel mounting bracket for wall or cabinet mounting.

Mounting brackets are pre-drilled at 316mm centres with 6x10mm oval holes for fixing with pan-head screws or bolts (not supplied).

Captive cross-head screws at each end of the bracket then slot into the body of the UPWT-1 display before tightening to secure.

(Dimensions stated above are for guidance and subject to revision without notice.)

Housing

The UPWT-1 Mini comes with polycarbonate housing. Also available is the UPWT-1 Optima in powdercoated mild steel housing – please contact us for more details.
