Overview
The BK2522C has been DISCONTINUED. There is no BK recommended REPLACEMENT.
Click here for a full list of available oscilloscopes.

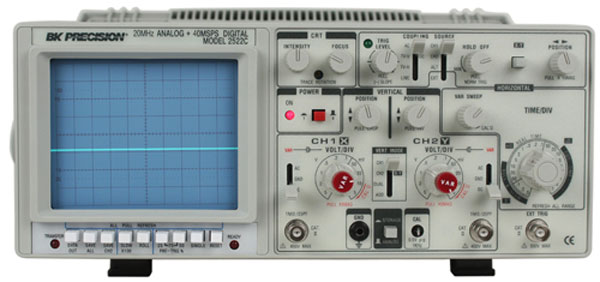

B&K Precision’s Model 2522C is one of the lowest cost digital storage / analogue oscilloscopes in the industry, yet it includes all the basic features needed by most technicians and engineers. Unlike other digital oscilloscopes, it has a full analogue mode with infinite resolution. Digital storage modes include refresh, roll, and single sweep. Equivalent time storage techniques allow storage of repetitive waveforms up to 20 MHz.
- 20MHz analogue bandwidth
- 40 MS/s sampling rate each channel
- 2k memory per channel
- USB host port for saving screen images to USB flash drive
- 1GHz equivalent time sampling (at 0.1 µs/div)
- Pretrigger capture
- cUL certified
