x- BK4084
x- BK4084 x- BK4084 x- BK4084

x- BK4084

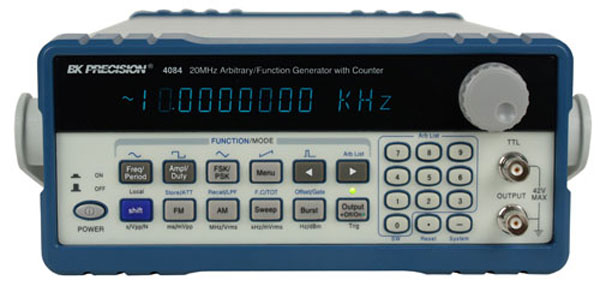

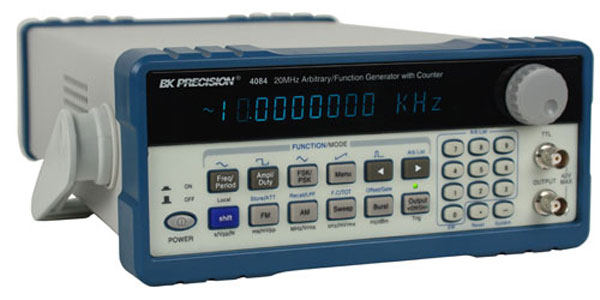

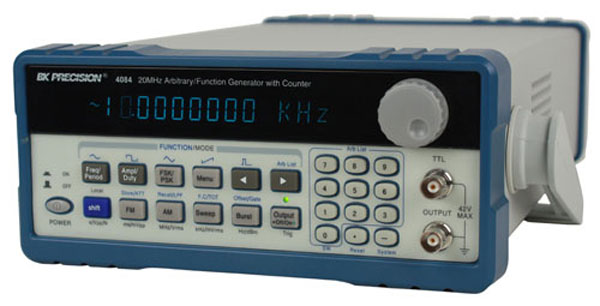

20 MHz Programmable DDS Function Generator

Model 4084 is a versatile, laboratory grade synthesized function generator.

Analogue Function Generator
20 MHz
RS232

Types

Max Frequency (Hz)

Interface

Add to compare

Documentation & Downloads

Overview

Model 4084 is a versatile, laboratory grade synthesized function generator. Direct digital synthesis (DDS) techniques are used to create stable, accurate output signals for all 27 built-in standard and complex (arbitrary) waveforms. The generator produces high purity, low distortion sine waves and provides a full suite of analog modulation capabilities including AM, FM, FSK, PSK, pulse modulation, burst mode and linear/logarithmic sweep combined with multiple trigger modes. The 4084’s versatility and capabilities make it an ideal tool for many general-purpose test and bench applications or for use in Training and Education.

REPLACED BY BK4054  – BK4084 IS NO LONGER AVAILABLE

Click here for BK4054

  • Frequency range of 1µHz to 20MHz for sine and square
  • Clean and stable output of very small signals down to the 1mV to 10mV range (50 ohm)
  • Support of internal and external modulation sources as well as internal, external and gated trigger sources
  • Convenient data input via numeric keypad or knob.
  • Adjust modulation parameters precisely and over a wide range
  • Fully programmable via the standard RS232 interface using SCPI compatible commands.
  • 100 MHz Universal Counter with frequency measurement and totalize function
