x- Sefram DAS 40

Documentation & Downloads

Overview

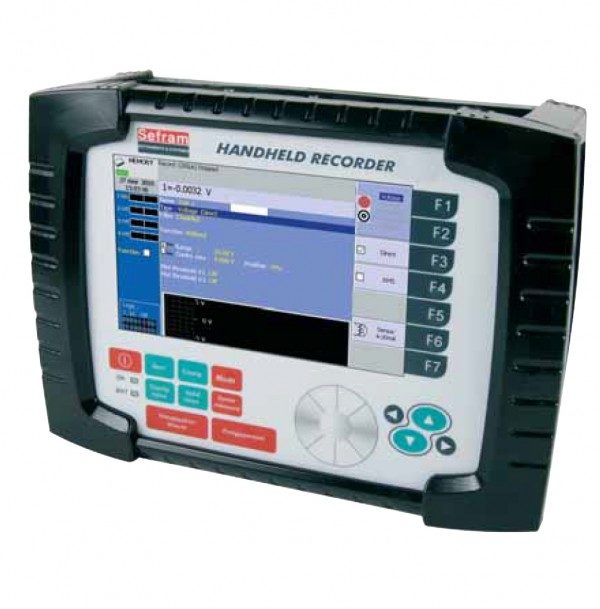

The DAS 40 high speed data recorder offers direct record on the internal hard disk, with 100kHz rate and 4 channels simultaneously. USB ports are provided for external memory devices (USB memory,…). Thanks to the new user interface under Windows CE™ , its large LCD TFT screen 7”, the portable DAS recorders are design for ease of use for a wide range of data recording applications and easy transfer of your records.

REPLACED BY DAS 50 – DAS 40 IS NO LONGER AVAILABLE

Click here for DAS 50

• 4 analogue channels
• Universal input
• DC, AC+DC RMS voltage measurement
• Frequency, Thermocouple
• Power analysis function
• 16 logical channels
• 14-bit resolution
• 7″ TFT LCD screen
• 1 Ms/s sampling rate
• 100 kHz bandwidth
• 8 GB internal hard disk
• 32 Mword memory
• Interfaces : USB, Ethernet,
• Lithium-ion battery
• Autonomy 10 hours.
• IEC 1010 CAT III 600V
• Printer mode* : 110 mm paper width

*Factory option.
