x- Sefram7847

x- Sefram7847

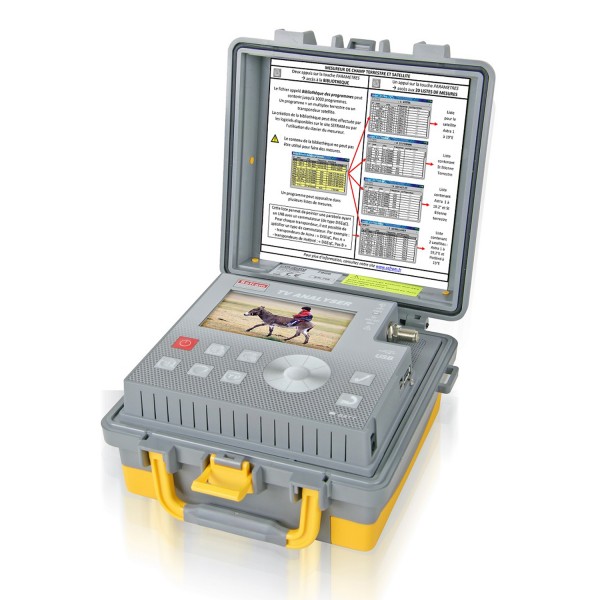

Sefram Model 7847 is a compact TV Meter for terrestrial (DVB-T and DVB-T2) and satellite (DVB-S and DVB-S2) TV, with MPEG decoding.

This product has been discontinued.

Overview

Sefram Model 7847 is a compact TV Meter for terrestrial (DVB-T and DVB-T2) and satellite (DVB-S and DVB-S2) TV, with MPEG decoding.

The Sefram Model 7847 compact TV Meter is soon to be DISCONTINUED.

Click here for the recommended replacement 7849.

Features:

• TV Meter for Digital Terrestrial TV (DVB-T and DVB-T2) / 45 to 865MHz and Satellite (DVB-S/S2) 950 to 2150MHz
• Display free to air programs SD and HD (MPEG2 and MPEG4)
• Full digital measurements for DVB-T, DVB-T2, DVB-S and DVB-S2: BER, MER, PER, Link Margin
• CELL ID display
• Checksat mode for fast alignment of dishes (with NIT)
• Network table display
• Echoes and pre-echoes measurement with graphical display of the guard interval (DVB-T, DVB-T2)
• Display constellation pattern
• Fast spectrum analysis
• Remote supply: 5V/13V/18V/24V
• DiSeqC 1.2 and SatCR
• 4.3 inches LCD TFT coloured screen
• Easy to use : sensitive wheel and direct access to functions
• Shockproof housing for extensive field use
• 3 hours autonomy and 1h charging time
• Free and easy upgrade of internal firmware with a USB memory stick
• USB interface
• Light weight : 1, 5 kg
• Free application software, to download: TR7837
