Triple Output Quad Display DC Power Supply ((2) 0-32V 0-6A/(1)5V 3A)

The model 1673 is a Quad Display Triple Output DC Regulated Power Supply that provides one fixed output (5V/ 3A) and two variable outputs (0 to 32V/ 0 to 6A) ratings. The four displays allow

192
6
32
3
none
Single
DC
Value

£757.00 (£908.40 incl. VAT)

Max. Power (W)

Max Current A

Max Voltage V

Number of Outputs

Interface

Ranging

AC or DC Output

Classification

In stock

Add to compare
Estimated Delivery 8th February - 15th February
Categories: , Supplier:

Documentation & Downloads

Overview

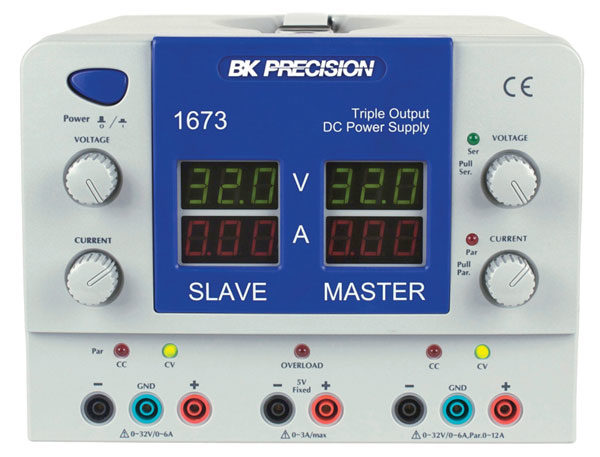

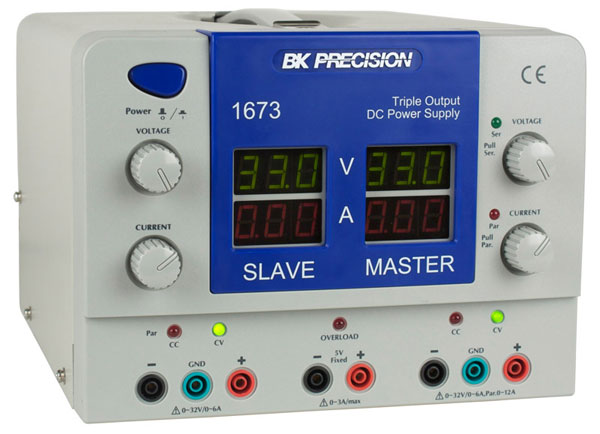

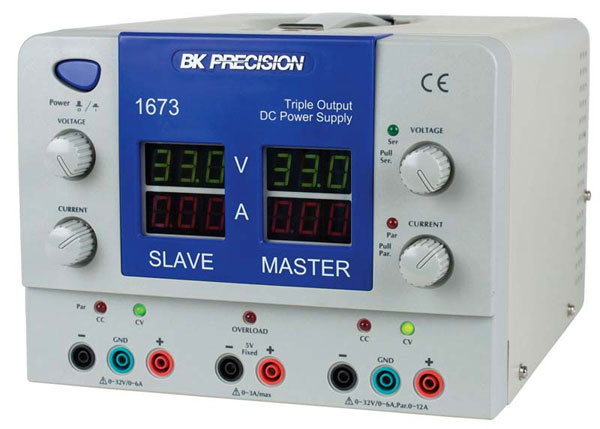

The model 1673 is a Quad Display Triple Output DC Regulated Power Supply that provides one fixed output (5V/ 3A) and two variable outputs (0 to 32V/ 0 to 6A) ratings. The four displays allow the user to continuously monitor the voltage and current values of the two main outputs. The variable outputs can work independently, or in series tracking, or parallel mode.

  • This is the UK spec 220VAC version with UK power lead
  • Independent control of Voltage and Current for variable output
  • CV/CC operation
  • Separate 3 digit displays for voltage (Green) and current (Red) for both variable outputs
  • LED indication for CV (Green) and CC (Red) modes
  • Overload indication LED for Fixed output
  • Series tracking and parallel mode operation
  • Output terminals are banana style (not binding posts), click on Accessories for leads
