Overview

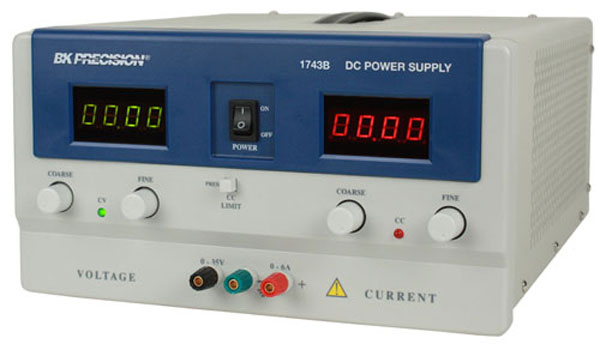

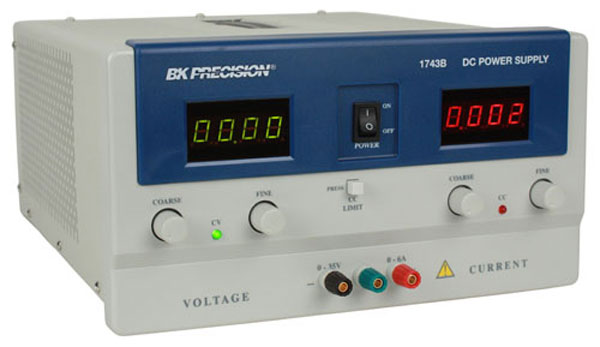

The BK1743B DC Power Supply is a high quality, general purpose dc power source.

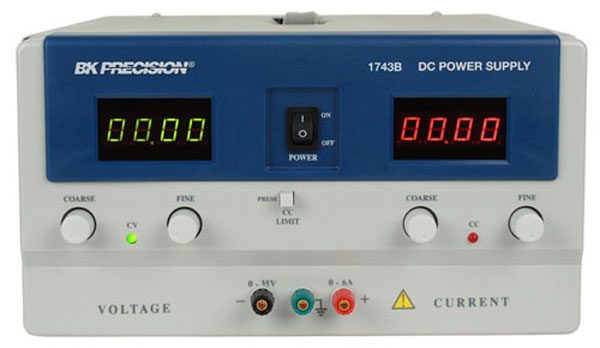

It provides 0-35 volts dc output, adjustable with both coarse and fine voltage controls for precise settability. The current output is 0-6 amps, adjustable with both coarse and fine current controls. Two large LED meters continuously monitor the output voltage and current. The VOLTAGE meter is green, while the CURRENT meter is red.
- This is the UK spec 220VAC version with UK power lead
- Connect two supplies in series to double the voltage output
- Reliable, Durable
- Operate continuously at full load without overheating
- Fully overload protected
- Coarse and fine voltage controls
- Excellent regulation
- Very low ripple
- Constant voltage or constant current operation
- Continuously monitor voltage and current output on two meters
