Overview

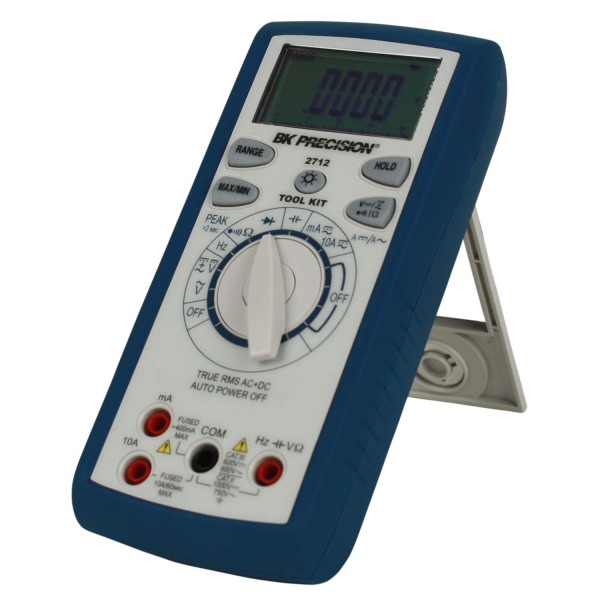

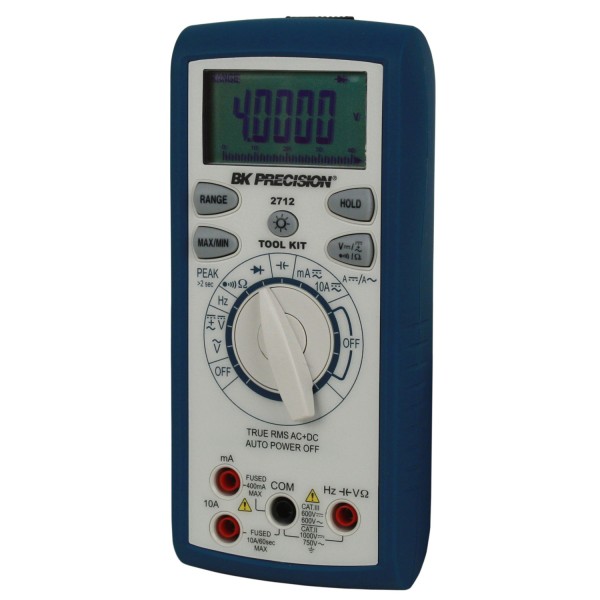

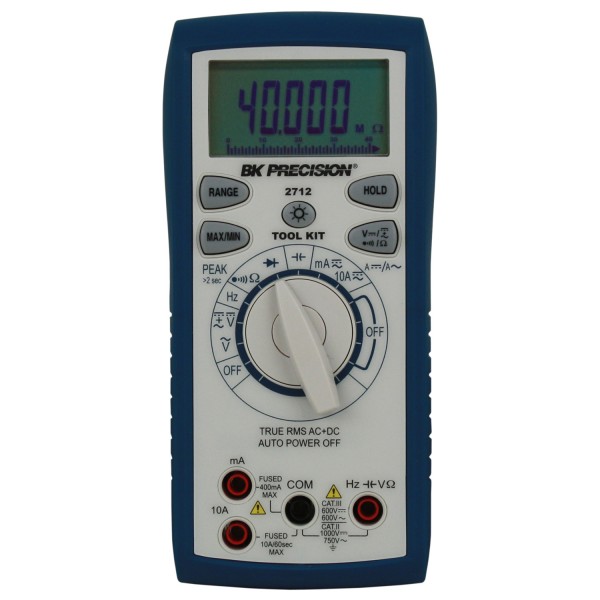

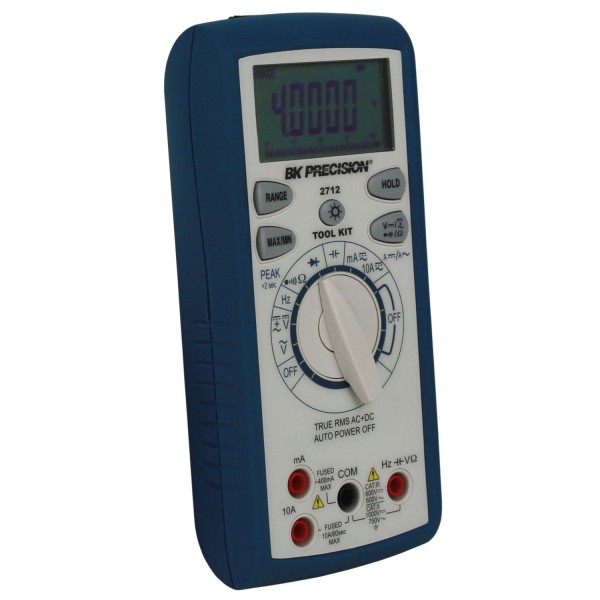

The BK2712 is a full featured auto ranging True RMS Digital Multimeter that combines performance, value and functionality. The 40000 count LCD display has a green back light that allows the meter to be used in dimly lit environments.
The B&K Precision model 2712 is a Digital Multimeter that can measure resistance values up to 40 MΩ and capacitance to 40 µF.
With the auto power off feature you won’t have to worry about accidental battery consumption.
A good value price tag and packed full of features makes the BK2712 a must in every Tool Kit®.
Features of the BK2712
- Magnetic hanger
- One-handed operation
- True RMS (AC+DC)
- Large easy-to-read LCD with backlight
- Auto/manual ranging
- Auto power off
- DC voltage to 1000 V
- Measures up to 10 A (AC & DC)
- AC voltage to 750 V
- Resistance to 40 Mohm
- Capacitance to 40 µF
- Frequency counter to 500 kHz
- Diode test
- Continuity test
