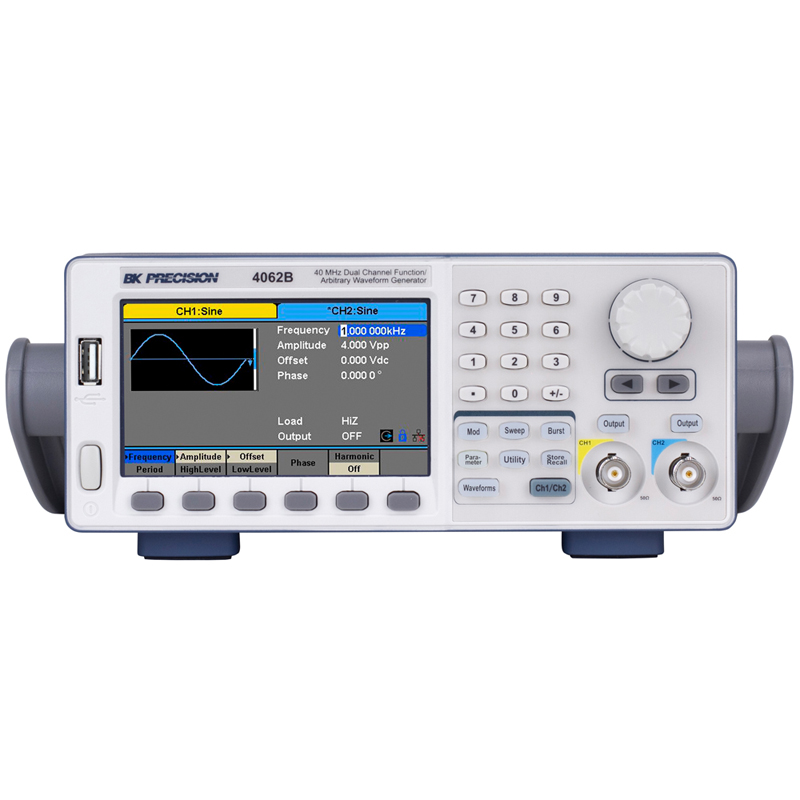

BK4062B Arbitrary Waveform Generator
BK4062B Arbitrary Waveform Generator BK4060B Arbitrary Waveform Generator BK4060B Arbitrary Waveform Generator

BK4060B Series

Dual Channel Function/Arbitrary Waveform Generator

BK4060B Dual Channel Function/Arbitrary Waveform Generator Series.

40 MHz
300 MSa/s
USB GPIB LAN
Function/Arbitrary Waveform Generator

Max Frequency (Hz)

Arb Sampling Rate

Interface

Types

Add to compare
Estimated Delivery 4th November - 11th November
Categories: , Supplier:

Documentation & Downloads

Overview

Introducing the BK4060B Series Dual Channel Function/Arbitrary Waveform Generators from B&K Precision.

Probably most importantly, this series are capable of generating stable and precise sine, square, triangle, pulse, and arbitrary waveforms. As a result they combine the cost saving benefits of DDS and true point-by-point arbitrary architectures.  Therefore this series meets a wide range of applications that require high signal fidelity and low jitter arbitrary waveforms.

Besides an easy-to-read colour display and intuitive user interface with numeric keypad, these instruments offer plenty of features. These features include linear/logarithmic sweep, burst mode, and variable DC offset.

Finally the BK4060B series has 196 arbitrary waveforms built-in. Likewise the included application software can be used to generate custom arbitrary waveforms.

Models of the BK4060B Series

Model Sine frequency range Square frequency range
4062B 40 MHz 25 MHz
4063B 80 MHz 25 MHz
4064B 120 MHz 25 MHz

Features of the BK4060B Series

  • 300 MSa/s (DDS), 75 MSa/s (true point-by-point) arbitrary waveform generator
  • Up to 1.2 GSa/s sample rate for sine, square, triangle, and pulse waveforms
  • 16-bit resolution, 8 Mpt arbitrary waveform length
  • Two independent channels with one button phase synchronization
  • Channel copy, track, and waveform combine functions
  • 4.3-inch touch screen display
  • Linear and logarithmic sweep
  • AM/DSB-AM/FM/PM/PSK/FSK/ASK and PWM modulation types
  • Variable DC offset
  • Overvoltage protection
  • Internal/external triggering
  • Gate and burst mode
  • 196 built-in predefined arbitrary waveforms
  • Frequency counter
  • LAN and USB device (USBTMC-compliant) with front panel USB host port
  • GPIB connectivity with optional USB-to-GPIB adapter (model AK40G)
  • LabVIEW drivers available
