BK4063B Arbitrary/Function Waveform Generator
BK4063B Arbitrary/Function Waveform Generator BK4063B Waveform Generator BK4063B Arbitrary Waveform Generator BK4063B

BK4063B

Dual Channel Function/Arbitrary Waveform Generator

BK4063B Dual Channel Function/Arbitrary Waveform Generator with a Sine Frequency Range of 80MHz.

80 MHz
300 MSa/s
USB GPIB LAN
Function/Arbitrary Waveform Generator

Max Frequency (Hz)

Arb Sampling Rate

Interface

Types

Add to compare
Estimated Delivery 10th November - 17th November
Categories: , Supplier:

Documentation & Downloads

Overview

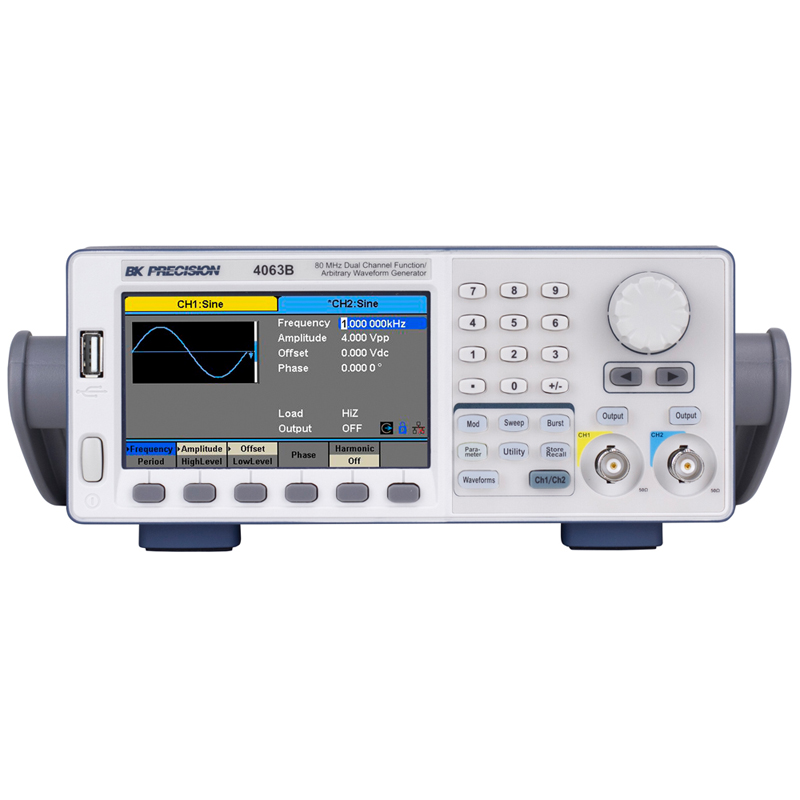

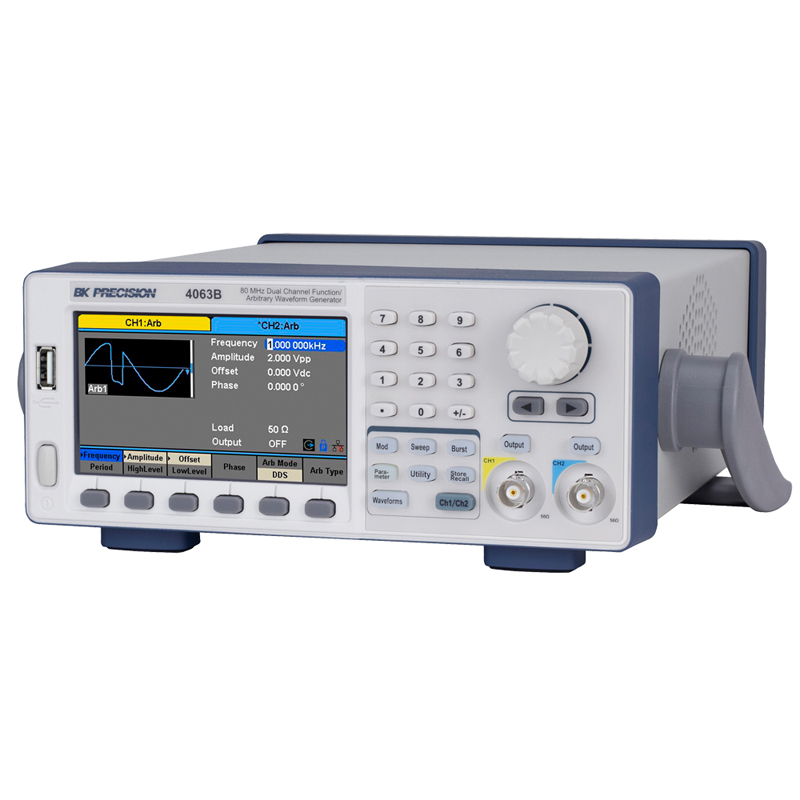

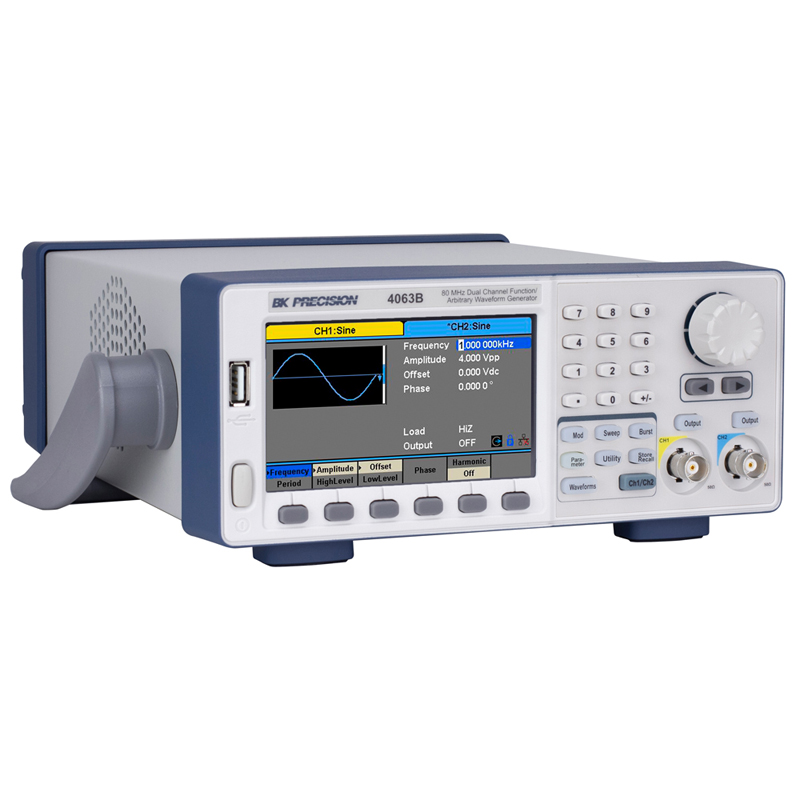

Introducing the BK4063B Waveform Generator with a Sine Frequency Range of 80MHz. A part of the BK4060B Series Dual Channel Function/Arbitrary Waveform Generators from B&K Precision.

Probably most importantly, this series are capable of generating stable and precise sine, square, triangle, pulse, and arbitrary waveforms. As a result they combine the cost saving benefits of DDS and true point-by-point arbitrary architectures.  Therefore this series meets a wide range of applications that require high signal fidelity and low jitter arbitrary waveforms.

Besides an easy-to-read colour display and intuitive user interface with numeric keypad, these instruments offer plenty of features. These features include linear/logarithmic sweep, burst mode, and variable DC offset.

Finally the BK4063B has 196 arbitrary waveforms built-in. Likewise the included application software can be used to generate custom arbitrary waveforms.

Features of the BK4063B

  • 80MHz Sine Frequency Range
  • 300 MSa/s (DDS), 75 MSa/s (true point-by-point) arbitrary waveform generator
  • Up to 1.2 GSa/s sample rate for sine, square, triangle, and pulse waveforms
  • 16-bit resolution, 8 Mpt arbitrary waveform length
  • Two independent channels with one button phase synchronization
  • Channel copy, track, and waveform combine functions
  • 4.3-inch touch screen display
  • Linear and logarithmic sweep
  • AM/DSB-AM/FM/PM/PSK/FSK/ASK and PWM modulation types
  • Variable DC offset
  • Overvoltage protection
  • Internal/external triggering
  • Gate and burst mode
  • 196 built-in predefined arbitrary waveforms
  • Frequency counter

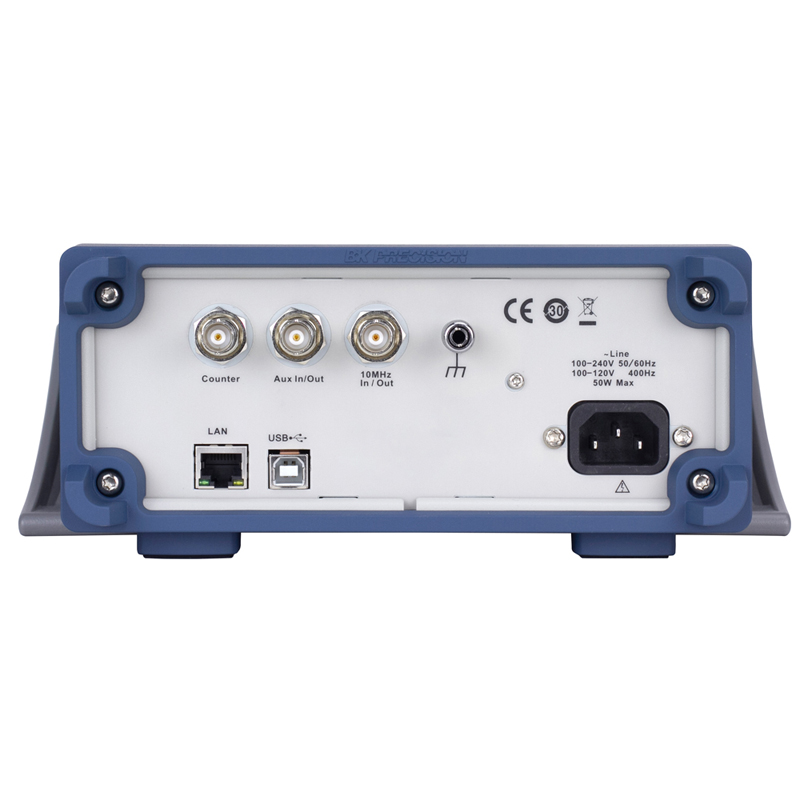

  • LAN and USB device (USBTMC-compliant) with front panel USB host port
  • GPIB connectivity with optional USB-to-GPIB adapter (model AK40G)
  • LabVIEW drivers available
