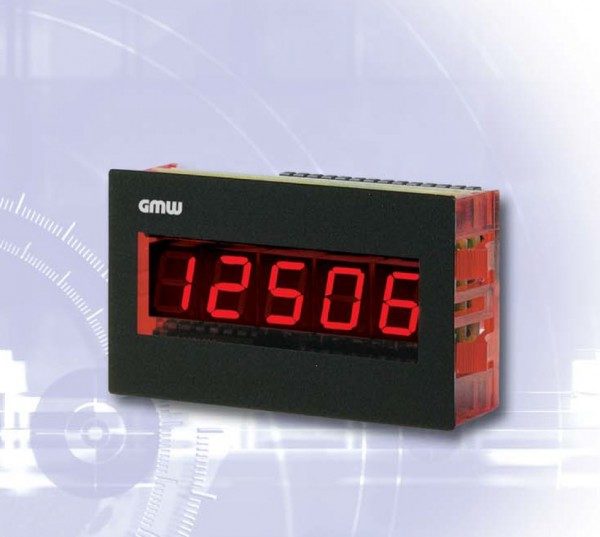

Digem 62×38 B5 is a 4.5 digit digital panel indicator, 62x38mm, with 10mm digits
Display Type 7 Segment LED with 10 mm character height
Available Measuring Ranges (email for details):
- Direct Voltage ± 2 V to 200 V
- Direct Current ± 200 µA to ± 200 mA
- Auxiliary Power 5 V ± 5 %
Features of the DIGEM 62×38 B5
- Protection front panel: IP 50
- Protection rear panel: IP 0
- Installation snap mounting

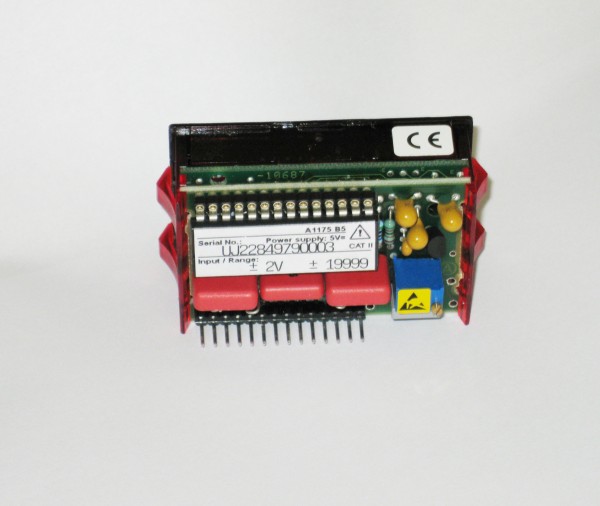

- Terminals plug connector, appropriate plug is included with instrument
