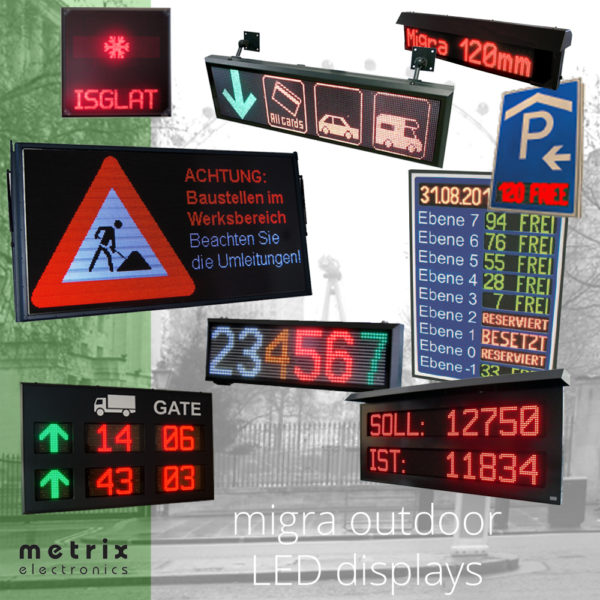

The migra MPB outdoor large format alphanumeric LED display by Microsyst of Germany available in red or multi-colour versions.
A modular design allows for many variants in different sizes, and with different resolutions.
High luminosity with a broad dispersion angle assures good legibility, even in bright sunlight.
The migra outdoor display can be single or double-sided and mount by articulated arms, brackets or chains.
Versions are available with IP65 and working range -40 to +50 °C.
In addition to various fonts, the scope of functions also includes the display of variables, text storage, bar graph function, moving letters function, scrolling, blinking and automatic brightness adjustment, as well as optional inputs for analogue control, a counter function or binary-coded control.
Standard interfaces such as RS485 or RS232 are available in addition to fieldbus interfaces including Profibus-DP, Profinet I/O RT, Ethernet IP/TCP-IP, EtherCAT, CANopen, DeviceNet or Modbus RTU. Control via WLAN is also possible (optional).
Projects, graphics or texts can be uploaded to the display via a configuration interface (RS232, RS485, USB or Ethernet).
Comprehensive PC configuration software “MKS” is included at no additional cost.
