Overview

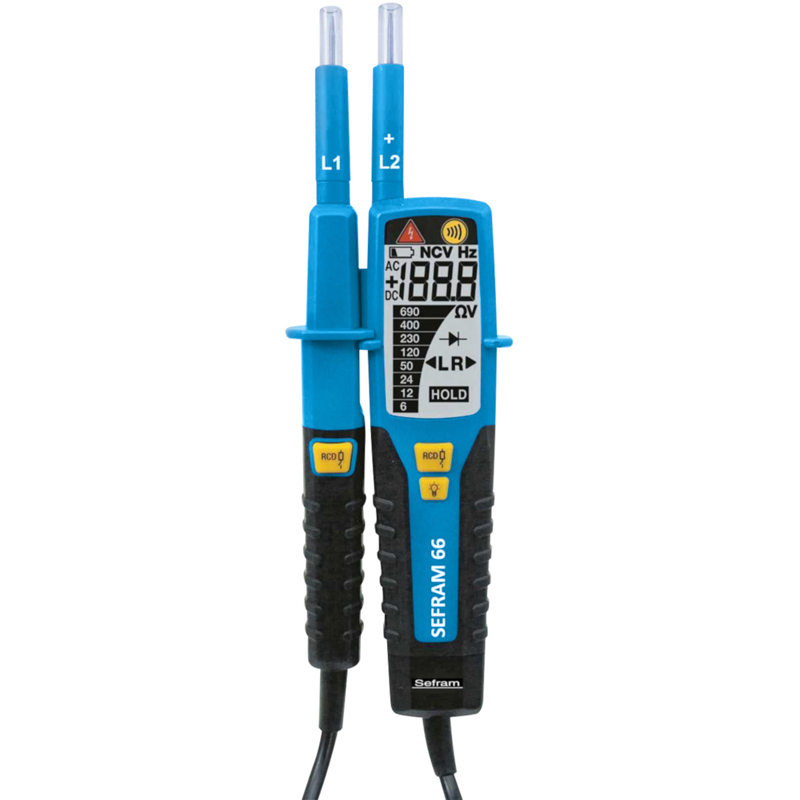

The new Sefram 66 is an easy-to-use LCD Voltage and Continuity Tester. Measurements of voltage and polarity are easily visible and can be read directly on the LCD backlit screen.
In addition, it has been designed, tested and approved according to the EN61243-3 standard. As a result of being designed with IP2X test probes, the user will be protected in many circumstances, including misuse of the instrument.
The SEFRAM 66 is rated : CAT III – 1000V and CAT IV – 600V. It’s equipped with complete autotest enable operating verification and with a double safety information (in front and on a side).
Finally, the SEFRAM66 is a robust field device and therefore resilient to shocks. This tester is equipped with a torch light for measurements in dark environments.
Features of the Sefram 66
- Start voltage : 6V
- Voltage range : 1000V AC and 1500V DC
- Polarity indication
- Continuity test
- Single-pole phase test
- Torch light
- Phase rotation test
- Side detection for ELV and continuity
- Auto-power ON / OFF
- High resolution voltage of 0.1 V (<30 V)
- Non-Contact Voltage detection
- RCD trip test (via 2-button activation)
- Diode test
- Voltage test with load
- Resistance measurement
- Frequency measurement
- Vibration motor for ELV
- Safety : CAT III 1000V and CAT IV 600V
