Overview

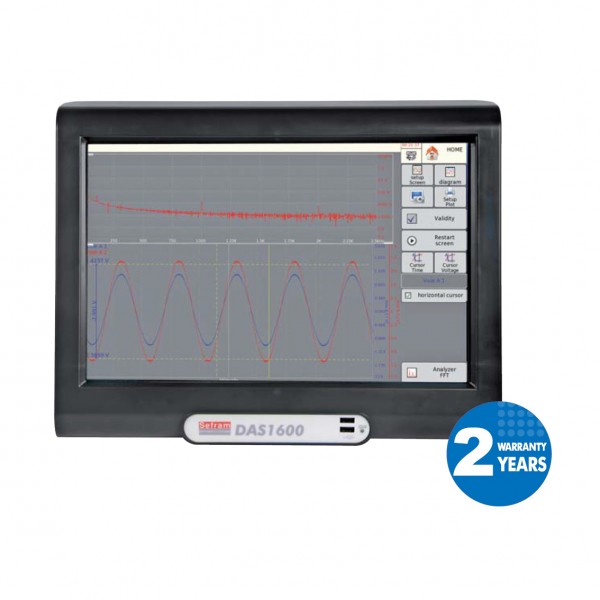

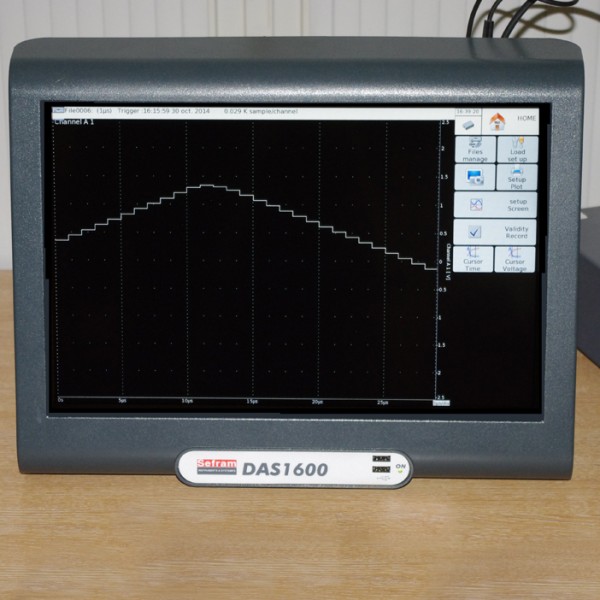

Sefram DAS 1600 family of touchscreen, paperless recorders offering up to 72 analogue inputs to cover all your applications – ideal to measure, record and analyse signals up to 100 kHz.
Features of the Sefram DAS 1600
- TFT panoramic LCD touch screen (15″4)
- 6 to 72 analogue channels
- Up to 6 measurement boards
- 16 logical channels
- 128 Mword memory, with segments
- Internal hard disk : 500 Gb
- Intuitive man-machine interface
- Power Analysis function (50Hz, 400Hz and 1kHz)
- Interfaces : 6 x USB, Ethernet, VGA
- Various measurement functions
- Remote control
- Supplied with licence free Sefram Viewer software for data transfer and analysis
- Safety: 600V CAT III (depending of boards)

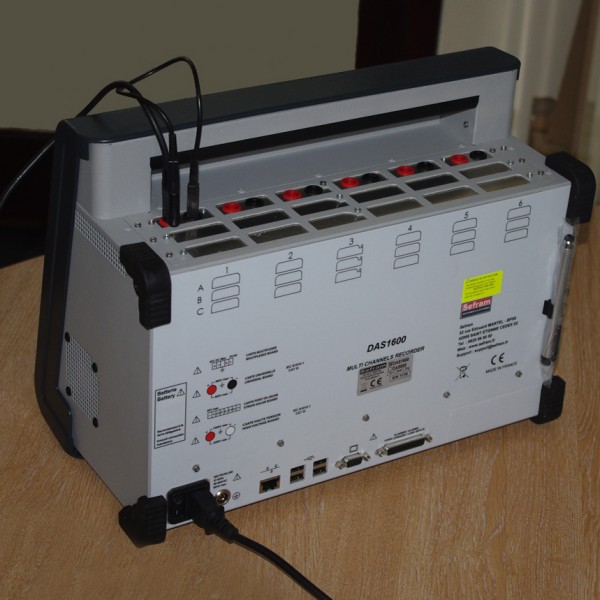

Input Boards
6 isolated input universal board (100kHz)
• DC, RMS AC+DC Voltage (+-500V)
• Current input via external shunt (optional extra)
• Frequency, Thermocouples
6 isolated high voltage board:
• DC, RMS AC+DC Voltage (+-1000V)
• Current input via external shunt (optional extra)
• Frequency
6 isolated differential input board – Strain Gauge
12 channels multiplexed board
Options
• IRIG board
• WiFi interface
• Internal battery
• Extension chassis for 3 measurement boards
• Version DAS1600SV version without cooling fan for use in polluted atmospheres.
