Overview
Sefram DAS Shunts for current measurement using Sefram high speed data recorders including DAS range.
These external shunts are required to protect the Sefram high speed recorders from damage from current signals.
The shunt provides a voltage output for input to the recorder for measurement and recording.
One shunt is required for each input channel in use – ie: to measure 6 input current signals, a total of 6 shunts will need to be purchased and installed.
The shunts are available in a range of resistances to permit different current signals to be measured.

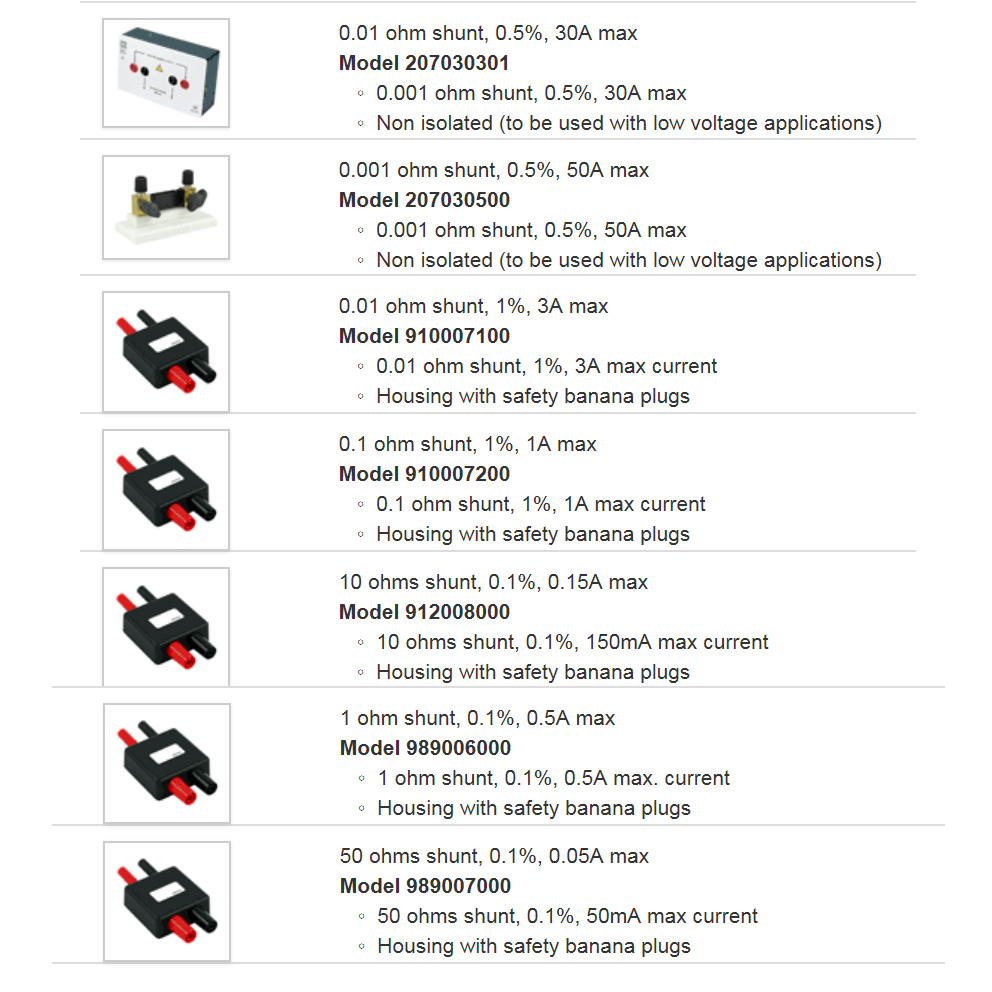

Shunt 0.1 Ω 1% 1 A plug-in 910007200
Shunt 1 Ω 0.1% 0.5 A plug-in 989006000
Shunt 10 Ω 0.1% 0.15 A plug-in 912008000
Shunt 50 Ω 0.1% 0.05 A plug-in 989007000
Shunt 0.01 Ω 0.5% 30 A external (plugs) 207030301
Shunt 0.001 Ω 0.5% 50 A external (terminals) 207030500
