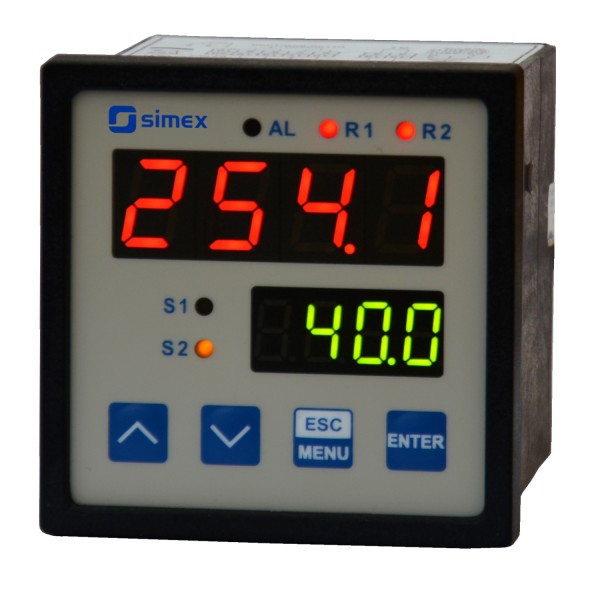

SRP-77

SRP-77

Dual Display Process Meter

The Simex SRP-77 is a Process Meter with two rows of display, 1 voltage input, 1 current input and 1 or 2 Relay Outputs.

Indicator/controller
72x72mm
4
and 4
10mm
13mm
Ammeter
Voltmeter

Types

Case Size (front)

Digits

,

Digit Height

,

Meter Type

,

Add to compare
Estimated Delivery 19th November - 26th November
Categories: , Supplier:

Documentation & Downloads

Overview

The Simex SRP-77 is a Process Meter with two rows of display. The first one presents measuring value and the second one programmed values: max. and min.

The meter is equipped with one current input 0-20 / 4-20mA and one voltage input 0-5 / 1-5 / 0-10 / 2-10V. Additionally current input has overcurrent protection circuit, which protects standard resistor.

Software allows the user to select active input, and this can be changed at any time.

The SRP-77 also allows the user to select a conversion characteristic of several kinds: linear, square, square root, user defined (max.20 points length) and volume characteristics of a cylindrical tank in the vertical and horizontal position. The result of which is shown on 4-digit LED display.

The displayed values range can be selected by the user, from -999 to 9999, plus decimal point.

The device can be equipped with one or two relay (or OC type) outputs making it possible to control processes.

Device SRP-77 is equipped with RS-485 / Modbus RTU communication interface and sensor supply output.

Ideal applications of the SRP-77 could be for controlling and regulating processes needing proportional and threshold control like: temperature processes (heating or cooling), valves controlling etc.

Features of the SRP-77

  • process meter with 2 displays
  • input 0/4-20 mA, 0/1-5V, 0/2-10V
  • 0, 1 or 2 relay outputs (or OC type)
  • power output: 24V DC
  • RS-485 / Modbus RTU
