Overview

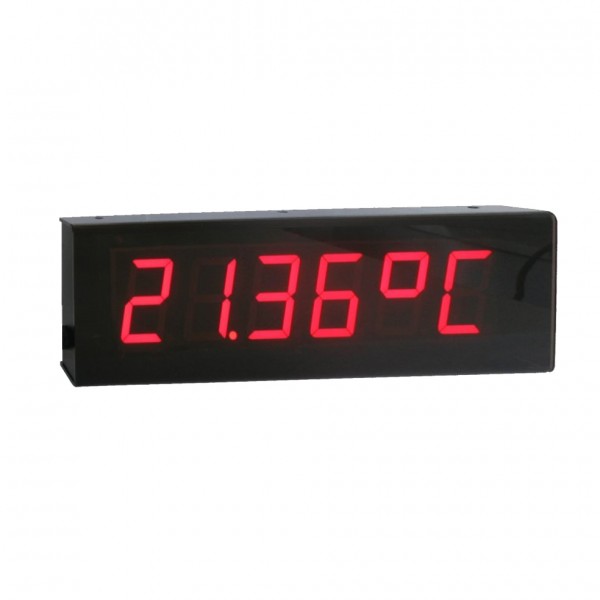

SWS-W606 Large 57mm 6-Digit LED Display.
This large-sized, simple, digital panel indicator (digits height: 57 mm) is intended for displaying any numerical values and characters defined by user (in SLAVE mode only) sent from the master device over the RS-485 serial interface link.
The displayed value may be collected from other devices (in MASTER mode).
The display brightness can be adjusted in 8 steps.
The device has 4 buttons being used for main presets programming.
To get high protection level, the front panel buttons are mounted under a transparent cover. To allow user to change presets without opening the cover, an IR sensor is installed. The remote controller keypad is the identical in function to the front panel keypad.
Modbus RTU protocol is used to communication with device.
The indicator can be configured with IR remote controller, front panel buttons or free S-Config software via the RS-485 communication port.
Features of the SWS-W606
- large-size indicator
- 57 mm LED display
- RS-485 / Modbus RTU
- MASTER / SLAVE selected from the menu
- possibility of displaying mnemonic messages
- display brightness adjustable in 8 steps
- all parameters are freely programmable with remote controller
