Overview
Portable Appliance (PAT) Tester for testing safety measures in accordance with:
- DIN VDE 0701-0702 – DGUV Regulation 3 (BGV A3)
- IEC/EN 60974-4 / DIN VDE 0544-4 (Arc Welders)
- IEC/EN 62353 / DIN VDE 0751-1 (Medical Devices and Systems)
Product Highlights:
- Menu-guided operation via a 7-inch Tablet PC with Android app and Bluetooth connection.
- Faster, automatic processing of all active tests including function test with real-effective power display in just one test step
- Inspection of the grid connection to PE connection and automatic shutdown with dangerous residual current of the test object
- Data input via the tablet camera with barcode and QR code scanner function and photos of the test object
- Data exchange with the PC via tablet and PC coupling (Android standard)
- Storage of the master and test data in a SQLITE3 database in the device
- Automatic generation of PDF reports
- Detection of the test object with a repetition test and automatic setting of the previously defined parameters for the test

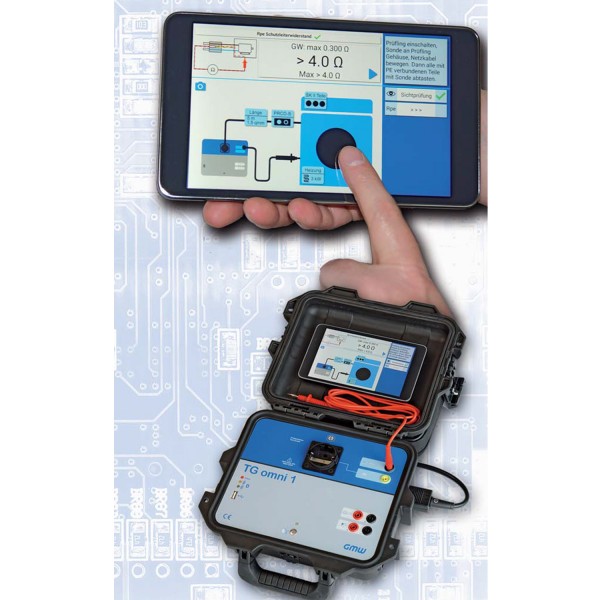

The TG Omni 1 is the basic unit supplied with App and Measuring module for DIN VDE 0701-0702 without tablet. Order Number 66000 00000. WLAN, 7-inch, tablet PC available as optional accessory with pre-installed app and pre-configured. Order Number 79200 19000.
