x- Sefram DAS 20

Documentation & Downloads

Overview

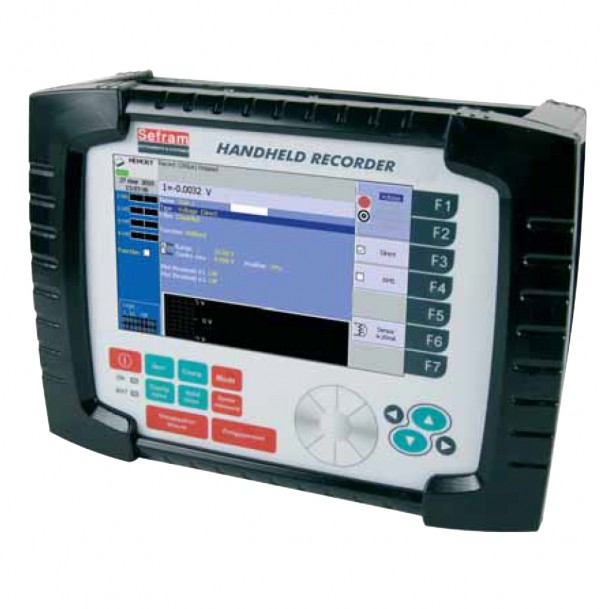

The DAS 20 high speed data recorder offers direct record on the internal hard disk, with 100kHz rate and 2 channelssimultaneously. USB ports are provided for external memory devices (USB memory,…). Thanks to the new userinterface under Windows CE™ , its large LCD TFT screen 7”, the portable DASrecorders are design for ease of use for a wide range of data recording applicationsand easy transfer of your records.

REPLACED BY DAS 30 – DAS 20 IS NO LONGER AVAILABLE

Click here for DAS 30

• 2 analogue channels
• Universal input
• DC, AC+DC RMS voltage measurement
• Frequency, Thermocouple
• Power analysis function
• 16 logical channels
• 14-bit resolution
• 7″ TFT LCD screen
• 1 Ms/s sampling rate
• 100 kHz bandwidth
• 8 GB internal hard disk
• 32 Mword memory
• Interfaces : USB, Ethernet,
• Lithium-ion battery
• Autonomy 10 hours.
• IEC 1010 CAT III 600V
• Printer mode* : 110 mm paper width

*Factory option.
