Overview

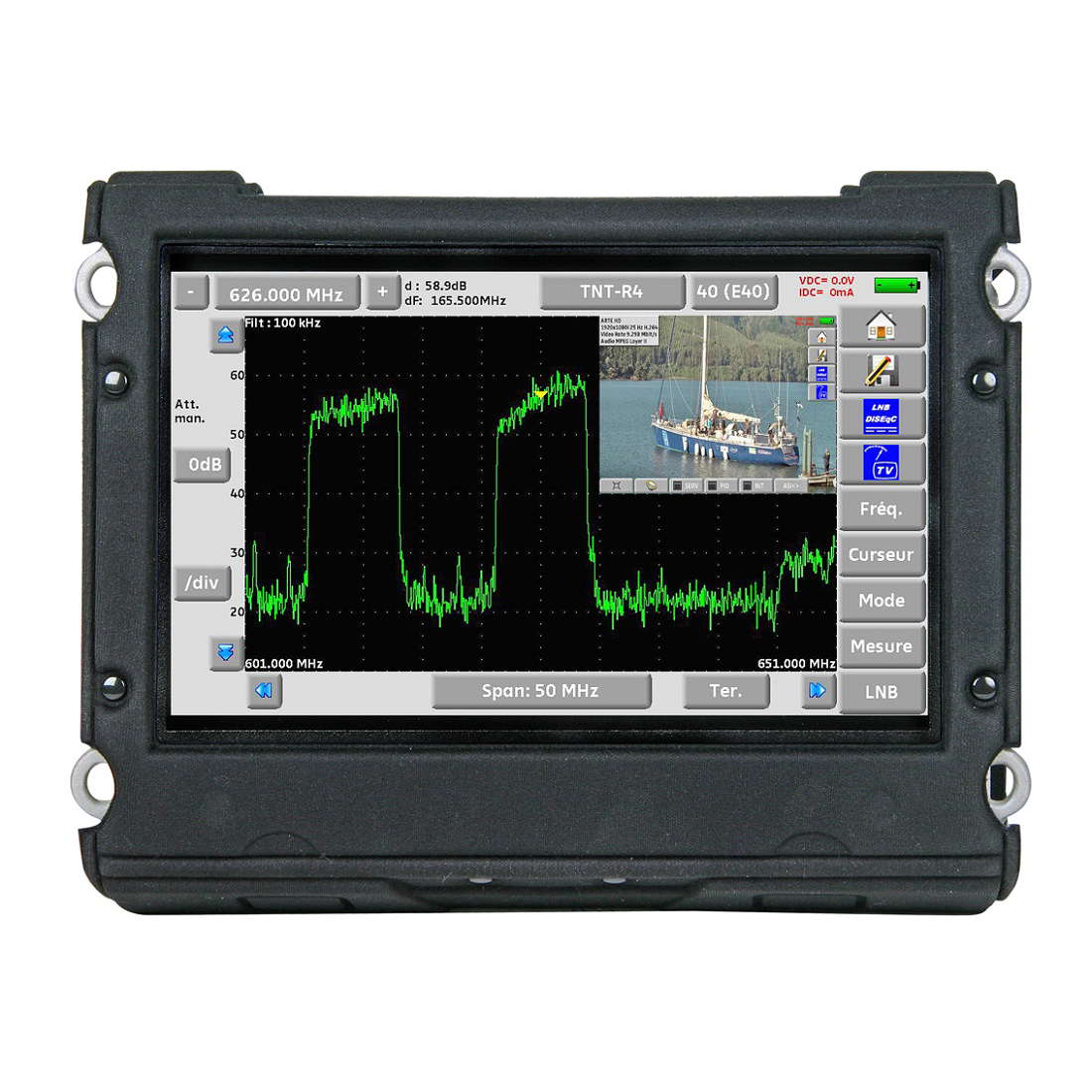

The Sefram 7872 is a TV Meter for cable (DVB-C/C2), terrestrial (DVB-T/T2/T2 Lite) and satellite (DVB-S/S2), with MPEG2 and MPEG4 (H264) decoding, touch screen
Features of the Sefram 7872
- Panoramic LCD touch screen: 10 inch (16:9)
- Bandwidth: 5-2200MHz
- Display free to air programs for digital terrestrial, cable and satellite
- Display High Definition TV programs MPEG4-H264
- All measurements for DVB-T/T2/T2 Lite, DVB-C/C2, DVB-S and DVB-S2
- All measurements for MPEG-2 and MPEG-4
- Ultra fast spectrum analysis
- Checksat mode with NIT (satellite recognition)
- LTE function to help the diagnostic of filter
- Real time echoes and pre-echoes measurement with zoom
- Constellation diagram with zoom
- Three in one display : measurement, TV picture, mini spectrum
- Graphical display of measurements

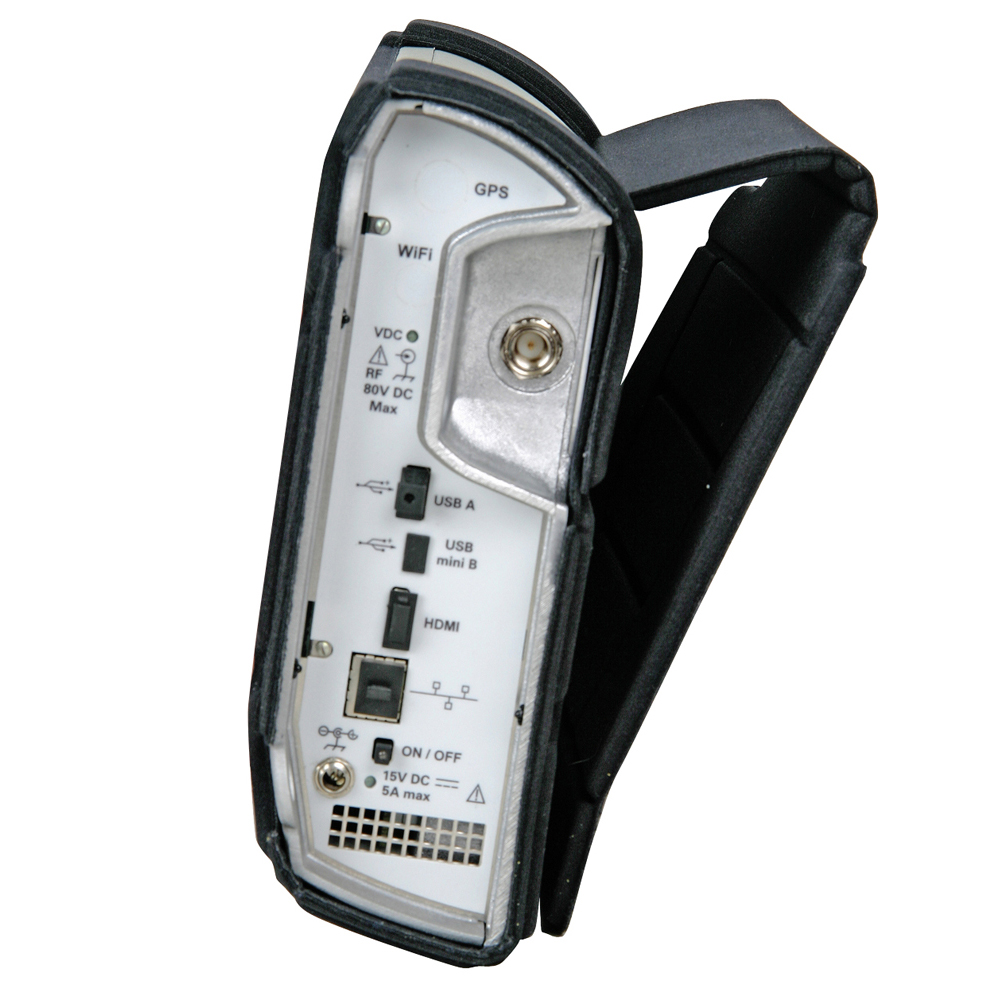

- HDMI interface
- Electronic compass for dish alignment
- Memorize and export/import data with USB memory stick
- Battery with 1 hour charging time and 4 hours autonomy
- Supplied with carrying bag and protection pouch
- Weight: 2,9kg
- Option (factory option): Optical input – download the datasheet here
- Option (factory option): FM (with RDS) measurements, DAB/DAB+ measurements
- Free application software, to download: TR7837
This product is now discontinued but some may be available to special order with extended leadtimes for a limited period – please email to enquire.
